Introduction to Cone Crushers
In the world of mining, construction, and aggregate production, efficiency and durability are paramount. One of the most reliable and widely used pieces of heavy machinery for crushing hard materials is the cone crusher. At Weiwa Machinery, with over three decades of experience in providing high-performance crushing solutions, we understand the critical role cone crushers play in optimizing production workflows.

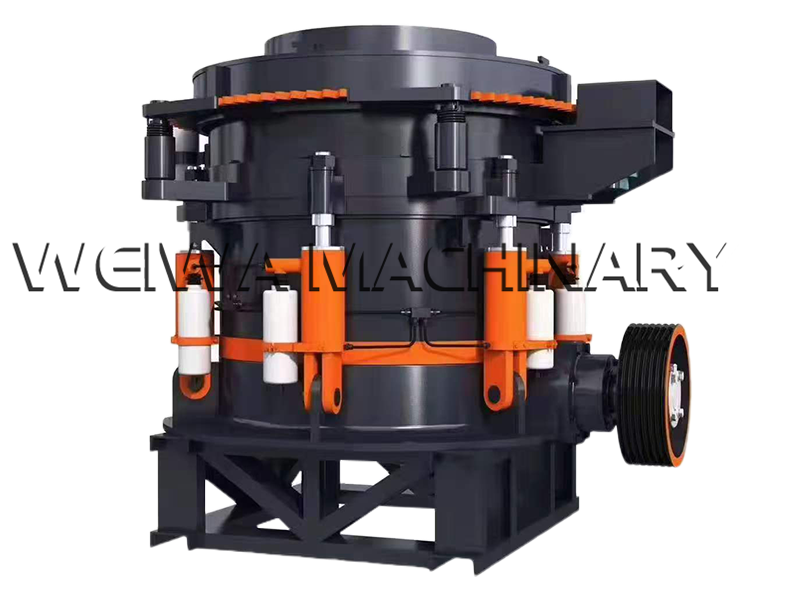

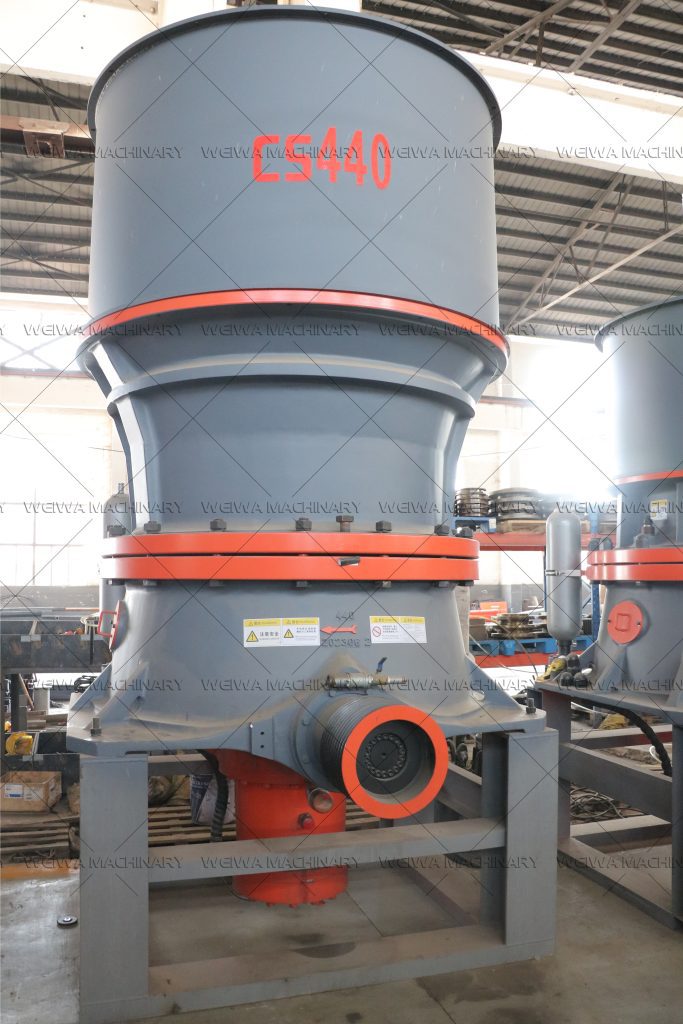

What Is a Cone Crusher?
A cone crusher is a type of compression crusher used to reduce the size of rocks and ores by squeezing the material between an eccentrically rotating mantle and a concave hopper. It is widely recognized for its ability to crush hard and abrasive materials efficiently, making it a staple in secondary, tertiary, and even quaternary crushing stages.
Unlike other crushers, such as jaw crushers or impact crushers, cone crushers are designed to produce finer and more uniform particle sizes, which is essential in industries where material specifications are tightly controlled.
At Weiwa Machinery, we offer a range of cone crushers tailored to meet the diverse needs of our global clientele, ensuring reliability, efficiency, and longevity in every unit we produce.
How Does a Cone Crusher Work?
Understanding the working principle of a cone crusher is essential for maximizing its efficiency and lifespan. The operation of a cone crusher is based on the principle of compression crushing, where the feed material is crushed by the continuous compression between two surfaces — the mantle and the concave.
Here’s a simplified breakdown of how it works:
- Feed Material Entry: Crushed material is fed into the top of the crusher and falls into the crushing chamber.
- Mantle Movement: The mantle, which is the moving part, gyrates in an eccentric motion, causing it to move closer to and farther away from the stationary concave.
- Compression and Crushing: As the mantle moves closer to the concave, the material is squeezed and crushed. Once it’s small enough, it falls through the gap between the mantle and concave and exits the crusher.
- Continuous Cycle: This process continues as long as the crusher is in operation, producing a consistent output of finely crushed material.
This method ensures that cone crushers can handle very hard materials while maintaining a relatively low operational cost per ton.
Suitable Raw Materials for Cone Crushers
Cone crushers are specifically engineered to process a wide range of hard and abrasive raw materials, making them ideal for industries that require fine and uniform particle sizes. Below are the primary types of materials that cone crushers are best suited to process:
At Weiwa Machinery, we understand that different industries have unique material requirements. That’s why we offer cone crushers that are specifically designed to handle a wide range of raw materials, ensuring optimal performance and efficiency.
Key Applications of Cone Crushers
Cone crushers are incredibly versatile and find applications across various industries. Their ability to produce a uniform particle size and handle hard materials makes them indispensable in the following scenarios:
1. Mining Industry
In mining operations, cone crushers are used to crush ore and hard rock into smaller, manageable sizes for further processing. They are commonly employed in the secondary and tertiary crushing stages, where fine and uniform particle sizes are required.
2. Aggregate Production
For companies involved in producing construction aggregates, cone crushers are essential for creating high-quality materials such as gravel, sand, and crushed stone. These materials are used in road construction, building foundations, and concrete production.
3. Quarrying Operations
Quarries rely on cone crushers to break down large chunks of stone into smaller pieces that can be used in various applications, including landscaping, construction, and manufacturing.
4. Recycling and Industrial Waste Processing
Cone crushers are also used in recycling operations to crush concrete, asphalt, and other construction debris, turning waste materials into reusable aggregates.
At Weiwa Machinery, we work closely with our clients to understand their specific needs and recommend the most suitable cone crusher for their application.
Types of Cone Crushers
Not all cone crushers are created equal. Depending on the application, there are several types of cone crushers, each designed to meet specific operational requirements.
1. Symons Cone Crusher (Spring Cone Crusher)
This is one of the oldest types of cone crushers, known for its robust design and ability to handle very hard materials. It uses a spring release system to protect the crusher from overloading.
2. Hydraulic Cone Crusher
Hydraulic cone crushers are more advanced and use hydraulic systems to adjust the crusher settings and clear blockages. They offer greater efficiency, easier operation, and reduced downtime.
3. Single-Cylinder Hydraulic Cone Crusher
This type features a single hydraulic cylinder for adjusting the crusher’s settings and clearing jams. It is known for its simplicity, reliability, and cost-effectiveness.
4. Multi-Cylinder Hydraulic Cone Crusher
With multiple hydraulic cylinders, this type provides more precise control over the crushing process, making it ideal for producing high-quality aggregates with tight particle size distributions.
At Weiwa Machinery, we offer a wide range of cone crusher types to ensure that our clients have access to the best possible solutions for their operations.

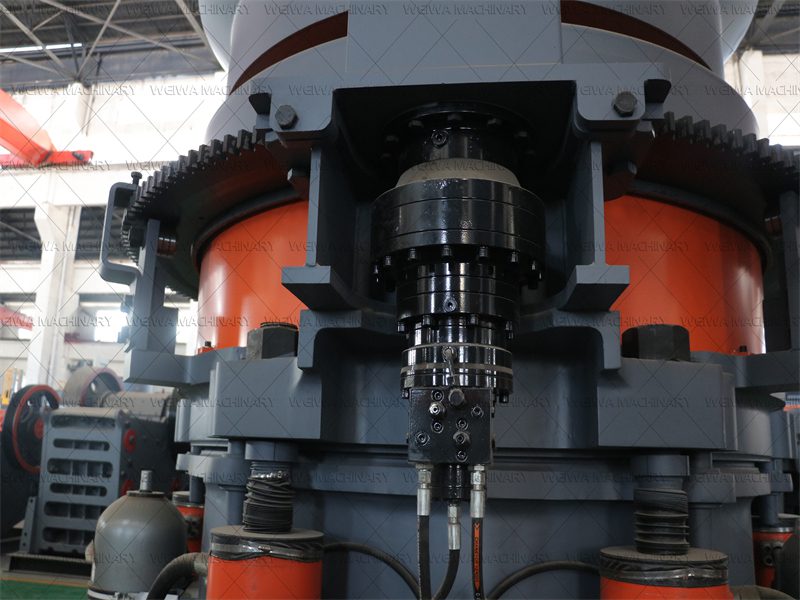

Key Components of a Cone Crusher
A cone crusher consists of several critical components, each playing a vital role in its operation:
1. Mantle
The mantle is the moving part of the crusher that rotates eccentrically to crush the material against the concave. It is typically made of high-manganese steel for durability.
2. Concave
The concave is the stationary part of the crushing chamber that works in conjunction with the mantle to crush the material. It is designed to withstand high impact and abrasion.
3. Eccentric Shaft
The eccentric shaft drives the motion of the mantle, creating the necessary compression force to crush the material.
4. Housing and Frame
The housing and frame provide structural support and protect the internal components of the crusher. They are built to withstand heavy loads and harsh operating conditions.
5. Lubrication System
A reliable lubrication system is essential for reducing friction and wear on moving parts, ensuring the longevity of the crusher.
6. Hydraulic System (in Hydraulic Cone Crushers)
The hydraulic system is used to adjust the crusher settings, clear blockages, and protect the machine from overloading.
Understanding these components can help operators maintain their cone crushers more effectively and extend their service life.
Advantages of Using a Cone Crusher
Cone crushers offer several advantages that make them a preferred choice for many industries:
1. High Crushing Efficiency
Cone crushers are designed to crush hard materials efficiently, producing a fine and uniform product with minimal waste.
2. Versatility
They can be used in various stages of the crushing process, from secondary to quaternary crushing, making them highly versatile.
3. Durability
Built with high-quality materials, cone crushers are designed to withstand harsh operating conditions and heavy workloads.
4. Low Operating Costs
With proper maintenance, cone crushers offer a low cost per ton of material crushed, making them a cost-effective solution for many operations.
5. Consistent Product Size
Cone crushers are known for their ability to produce a consistent particle size, which is crucial for meeting strict quality standards.
At Weiwa Machinery, we ensure that our cone crushers are engineered to deliver these benefits and more, helping our clients achieve their production goals.

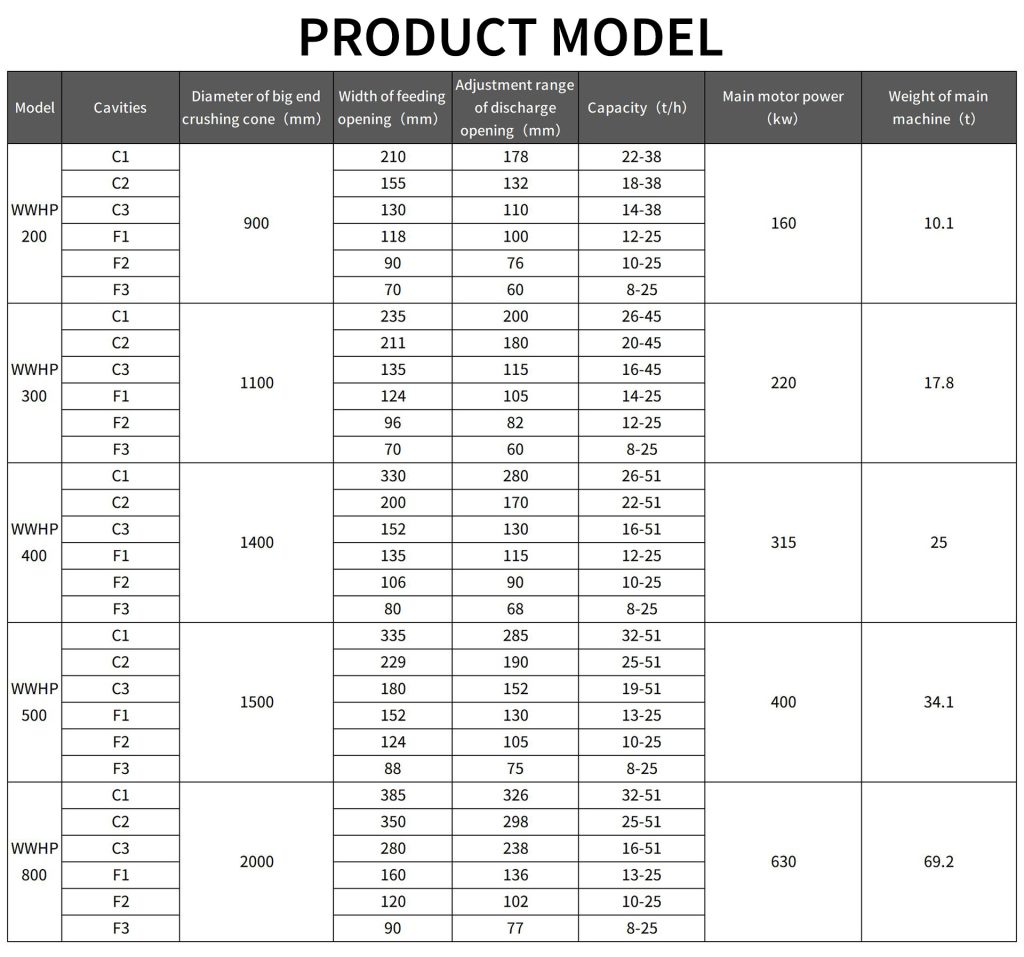

Technical Parameters of Cone Crushers
When selecting a cone crusher, understanding its technical specifications is crucial to ensure it meets the specific demands of your operation. Below are the key technical parameters typically associated with cone crushers:
Factors to Consider When Choosing a Cone Crusher
Selecting the right cone crusher for your operation is crucial for maximizing efficiency and minimizing costs. Here are some key factors to consider:
1. Type of Material
The hardness, abrasiveness, and size of the material you need to crush will determine the type of cone crusher that is best suited for your operation.
2. Desired Output Size
Consider the particle size distribution you need for your final product. Different cone crushers are designed to produce specific size ranges.
3. Production Capacity
Evaluate your required throughput and choose a crusher that can handle the volume of material you need to process.
4. Operational Environment
Consider the conditions in which the crusher will operate, including temperature, humidity, and altitude, as these factors can affect performance.
5. Maintenance Requirements
Choose a cone crusher that is easy to maintain and has readily available spare parts to minimize downtime.
At Weiwa Machinery, our team of experts can help you select the right cone crusher based on your specific needs and operational requirements.
Maintenance Tips for Cone Crushers
Proper maintenance is essential for ensuring the longevity and efficiency of your cone crusher. Here are some tips to keep your equipment in top condition:
1. Regular Inspections
Conduct regular inspections to identify wear and tear on components such as the mantle, concave, and bearings.
2. Lubrication
Ensure that the lubrication system is functioning correctly and that all moving parts are properly lubricated to reduce friction and wear.
3. Cleanliness
Keep the crusher and its components clean to prevent the buildup of debris, which can affect performance and cause damage.
4. Timely Replacements
Replace worn or damaged parts promptly to avoid further damage to the crusher and maintain consistent performance.
5. Operator Training
Ensure that operators are properly trained in the use and maintenance of the crusher to prevent misuse and prolong its lifespan.
At Weiwa Machinery, we provide comprehensive maintenance guidelines and support to help our clients get the most out of their equipment.
Why Choose Weiwa Machinery?
With over 30 years of experience in the machinery industry, Weiwa Machinery has established itself as a trusted provider of high-quality crushing solutions. Our cone crushers are engineered with precision, built to last, and designed to meet the diverse needs of our global clientele.
Here’s what sets us apart:
1. Expertise and Experience
Our team of engineers and industry experts brings decades of knowledge and expertise to every project, ensuring that you receive the best possible solutions.
2. Customized Solutions
We understand that every operation is unique. That’s why we offer customized cone crushers tailored to your specific requirements.
3. Quality Assurance
Our products are manufactured to the highest standards, using premium materials and advanced manufacturing techniques to ensure durability and performance.
4. Global Reach
With a strong presence in the global market, we are committed to providing exceptional service and support to clients worldwide.
5. Reliability and Durability
Our cone crushers are built to withstand the toughest conditions, ensuring reliable performance and long service life.
When you choose Weiwa Machinery, you’re not just investing in equipment — you’re partnering with a trusted ally dedicated to your success.
Conclusion
Cone crushers are an essential piece of equipment for anyone involved in mining, construction, or aggregate production. Their ability to crush hard materials efficiently and produce uniform particle sizes makes them a valuable asset in any operation.
By understanding what a cone crusher is, how it works, and the factors to consider when choosing one, you can make informed decisions that enhance your operational efficiency and profitability.
At Weiwa Machinery, we are proud to be a leading provider of cone crushers and other crushing solutions, with over 30 years of experience in the industry. Our commitment to quality, innovation, and customer satisfaction sets us apart, and we are dedicated to helping you achieve your goals.
Whether you’re looking for a reliable cone crusher for your mining operation, quarry, or aggregate plant, Weiwa Machinery has the expertise and solutions you need. Contact us today to learn more about our products and how we can support your success.
